    三款免费的PHP加速器:APC、eAccelerator、XCache比较

    2009年07月27日 下午 | 作者:VPS侦探

    一直想找一些关于PHP加速的文章,偶然看到杀客的这篇文章,感觉不错,分享给大家,再此感谢杀客。

    一、PHP加速器介绍

            PHP加速器是一个为了提高PHP执行效率,从而缓存起PHP的操作码,这样PHP后面执行就不用解析转换了,可以直接调用PHP操作码,这样速度上就提高了不少。

            Apache中使用mod_php的请求、响应执行流程:

      1、Apache接收请求。
    2、Apache传递请求给mod_php。
    3、mod_php定位磁盘文件,并加载到内存中。
    4、mod_php编译源代码成为opcode树。
    5、mod_php执行opcode树。

           PHP加速器相应的就是第四步,它的目的就是防止PHP每次请求都重复编译PHP代码,因为在高访问量的网站上,大量的编译往往没有执行速度快呢?所以这里面有个瓶颈就是PHP的重复编译既影响了速度又加载了服务器负载,为了解决此问题,PHP加速器就这样诞生了。

    二、PHP加速器安装与配置

            1、安装配置APC

                 APC全称是Alternative PHP Cache,官方翻译叫”可选PHP缓存”,它是PHP PECL中的一个扩展,好像是facebook在使用它,下面开始安装(ubuntu环境):
    $wget http://pecl.php.net/get/APC-3.0.19.tgz
    $tar xvzf APC-3.0.19.tgz
    $cd APC-3.0.19/APC-3.0.19
    $/usr/local/php/bin/phpize
    $./configure –enable-apc –enable-apc-mmap –with-php-config=/usr/local/php/bin/php-config
    $make
    $sudo make install

    下面我们再配置APC,因为我的PECL扩展路径改变了,所以我得移动下编译好的文件:
    $sudo mv /usr/local/php/lib/php/extensions/no-debug-non-zts-20060613/apc.so /usr/local/php/lib/php/extensions/PECL

    然后我们再编辑php.ini文件进行配置,请把下面的代码加入到php.ini中即可:
    extension_dir = "/usr/local/php/lib/php/extensions/PECL"
    extension = apc.so
    ; APC
    apc.enabled = 1
    apc.shm_segments = 1
    apc.shm_size = 64
    apc.optimization = 1
    apc.num_files_hint = 0
    apc.ttl = 0
    apc.gc_ttl = 3600
    apc.cache_by_default = on

         这样重启apache就会在phpinfo()信息中显示。

           2、安装配置eAccelerator

              eAccelerator的前身其实是truck-mmcache,因为开发truk-mmcache的人被Zend给招安了,所以开发eAccelerator的人继承了truk-mmcache的一些特性,设计出eAccelerator加速器。安装如下:
    $wget http://jaist.dl.sourceforge.net/sourceforge/eaccelerator/eaccelerator-0.9.5.tar.bz2
    $tar -jxf eaccelerator-0.9.5.tar.bz2
    $cd eaccelerator-0.9.5
    $/usr/local/php/bin/phpize
    $./configure –enable-eaccelerator=shared –with-php-config=/usr/local/php/bin/php-config
    $make
    $sudo make install
    $sudo mv /usr/local/php/lib/php/extensions/no-debug-non-zts-20060613/eaccelerator.so /usr/local/php/lib/php/extensions/PECL

    将下面代码加入php.ini文件中
    extension = eaccelerator.so
    ; eAccelerator
    eaccelerator.shm_size = "16"
    eaccelerator.cache_dir = "/tmp/eaccelerator"
    eaccelerator.enable = "1"
    eaccelerator.optimizer = "1"
    eaccelerator.check_mtime = "1"
    eaccelerator.debug = "0"
    eaccelerator.filter = ""
    eaccelerator.shm_max = "0"
    eaccelerator.shm_ttl = "0"
    eaccelerator.prune_period = "0"
    eaccelerator.shm_only = "0"
    eaccelerator.compress = "1"
    eaccelerator.compress_level = "9"

    创建缓存目录,重启apache

    $sudo mkdir /tmp/eaccelerator
    $sudo chmod 777 /tmp/eaccelerator
    $sudo /usr/local/apache/apachectl restart

    在phpinfo()检查是否安装成功.

    3、安装配置XCache

    XCache作为国人自己开发的东西,做小菜鸟的我也感到骄傲,而且XCache无论在速度还是性能上都做的不错。下面就赶紧让我们品尝它吧!

    $wget http://xcache.lighttpd.net/pub/Releases/1.2.2/xcache-1.2.2.tar.gz
    $tar xvzf xcache-1.2.2.tar.gz
    $cd xcache-1.2.2
    $/usr/local/php/bin/phpize
    $./configure –enable-xcache –enable-xcache-coverager –with-php-config=/usr/local/php/php-config
    $make
    $sudo make install
    $sudo mv /usr/local/php/lib/php/extensions/no-debug-non-zts-20060613/xcache.so /usr/local/php/lib/php/extensions/PECL

    在php.ini添加配置信息:

    extension = xcache.so
    ; xcache
    xcache.admin.user = "admin"
    xcache.admin.pass = "(执行) echo ’(你的密码)’|md5sum(得出的密文)"
    ;
    xcache.size = 24M
    xcache.shm_scheme = "mmap"
    xcache.count = 2
    xcache.slots = 8k
    xcache.ttl = 0
    xcache.gc_interval = 0

    xcache.var_size = 8M
    xcache.var_count = 1
    xcache.var_slots = 8k
    xcache.var_ttl = 0
    xcache.var_maxttl = 0
    xcache.var_gc_interval = 300
    xcache.test = Off
    xcache.readonly_protection = On
    xcache.mmap_path = "/tmp/xcache"
    xcache.coredump_directory = ""
    xcache.cacher = On
    xcache.stat = On
    xcache.optimizer = Off
    ;
    xcache.coverager = On
    xcache.coveragedump_directory = ""

    创建缓存目录,重启apache

    $sudo mkdir /tmp/xcache
    $sudo chmod 777 /tmp/xcache
    $sudo /usr/local/apache/bin/apachectl restart

    去查看phpinfo()信息吧!

    三、PHP加速器测试

    1、测试环境

    硬件: AMD Athlon 64 X2 Dual Core Processor 4400+ @ 2.2GHz CPU, 2GB 内存. 160GB SATA 硬盘

    软件: Linux Ubuntu server Gutsy 7.10, Apache 2.2.4, MySQL 5.0.45 和 PHP 5.2.3

    测试指令: ab -c5 -n3000 http://example.com/ (我们使用的是Apache Benchmark (ab) 工具,并发连接为5,3000次请求)

    2、测试结果

    无任何加速器:

    Document Path: /
    Document Length: 21757 bytes
    Concurrency Level: 5
    Time taken for tests: 288.255212 seconds
    Complete requests: 3000
    Failed requests: 0
    Write errors: 0
    Total transferred: 66777000 bytes
    HTML transferred: 65271000 bytes
    Requests per second: 10.41 [#/sec] (mean)
    Time per request: 480.425 [ms] (mean)
    Time per request: 96.085 [ms] (mean, across all concurrent requests)
    Transfer rate: 226.23 [Kbytes/sec] received
    Connection Times (ms)
    min mean[+/-sd] median max
    Connect: 0 0 0.5 0 19
    Processing: 181 479 186.0 444 1822
    Waiting: 166 461 184.7 427 1708
    Total: 181 479 186.0 444 1822
    Percentage of the requests served within a certain time (ms)
    50% 444
    66% 525
    75% 577
    80% 619
    90% 732
    95% 819
    98% 946
    99% 1012
    100% 1822 (longest request)

    APC加速器:

    Document Path: /
    Document Length: 21757 bytes
    Concurrency Level: 5
    Time taken for tests: 98.530068 seconds
    Complete requests: 3000
    Failed requests: 0
    Write errors: 0
    Total transferred: 66777000 bytes
    HTML transferred: 65271000 bytes
    Requests per second: 30.45 [#/sec] (mean)
    Time per request: 164.217 [ms] (mean)
    Time per request: 32.843 [ms] (mean, across all concurrent requests)
    Transfer rate: 661.84 [Kbytes/sec] received
    Connection Times (ms)
    min mean[+/-sd] median max
    Connect: 0 0 0.0 0 2
    Processing: 58 163 71.2 155 2452
    Waiting: 53 158 69.6 150 2329
    Total: 58 163 71.2 155 2452
    Percentage of the requests served within a certain time (ms)
    50% 155
    66% 178
    75% 193
    80% 204
    90% 235
    95% 258
    98% 285
    99% 302
    100% 2452 (longest request)

    eAccelerator加速器:

    Document Path: /
    Document Length: 21757 bytes
    Concurrency Level: 5
    Time taken for tests: 95.983986 seconds
    Complete requests: 3000
    Failed requests: 0
    Write errors: 0
    Total transferred: 66777000 bytes
    HTML transferred: 65271000 bytes
    Requests per second: 31.26 [#/sec] (mean)
    Time per request: 159.973 [ms] (mean)
    Time per request: 31.995 [ms] (mean, across all concurrent requests)
    Transfer rate: 679.39 [Kbytes/sec] received
    Connection Times (ms)
    min mean[+/-sd] median max
    Connect: 0 0 0.1 0 3
    Processing: 57 159 91.3 148 3830
    Waiting: 50 152 89.8 142 3704
    Total: 57 159 91.3 148 3830
    Percentage of the requests served within a certain time (ms)
    50% 148
    66% 174
    75% 193
    80% 205
    90% 239
    95% 263
    98% 289
    99% 309
    100% 3830 (longest request)

    XCache加速器:

    Document Path: /
    Document Length: 21757 bytes
    Concurrency Level: 5
    Time taken for tests: 99.76300 seconds
    Complete requests: 3000
    Failed requests: 0
    Write errors: 0
    Total transferred: 66777000 bytes
    HTML transferred: 65271000 bytes
    Requests per second: 30.28 [#/sec] (mean)
    Time per request: 165.127 [ms] (mean)
    Time per request: 33.025 [ms] (mean, across all concurrent requests)
    Transfer rate: 658.19 [Kbytes/sec] received
    Connection Times (ms)
    min mean[+/-sd] median max
    Connect: 0 0 0.0 0 2
    Processing: 59 164 83.4 155 3367
    Waiting: 52 156 66.4 148 1802
    Total: 59 164 83.4 155 3367
    Percentage of the requests served within a certain time (ms)
    50% 155
    66% 178
    75% 196
    80% 206
    90% 237
    95% 263
    98% 287
    99% 305
    100% 3367 (longest request)

    3、结果摘要

      请求时间(秒) 单次请求时间(毫秒) 最大内存占用(MB) 最小内存占用(MB)
    None 10.41 96.08 24 24
    APC 30.45 32.84 21 21
    eAccelerator 31.26 31.99 23 18
    XCache 30.28 33.02 29 19

    四、PHP加速器比较结果总结

         1、通过测试得出eAccelerator在请求时间和内存占用综合方面是最好的。

         2、通过测试得出使用加速器比无加速器在请求时间快了3倍左右。

         3、通过各个官方观察,XCache是更新最快的,这也说明最有发展的。

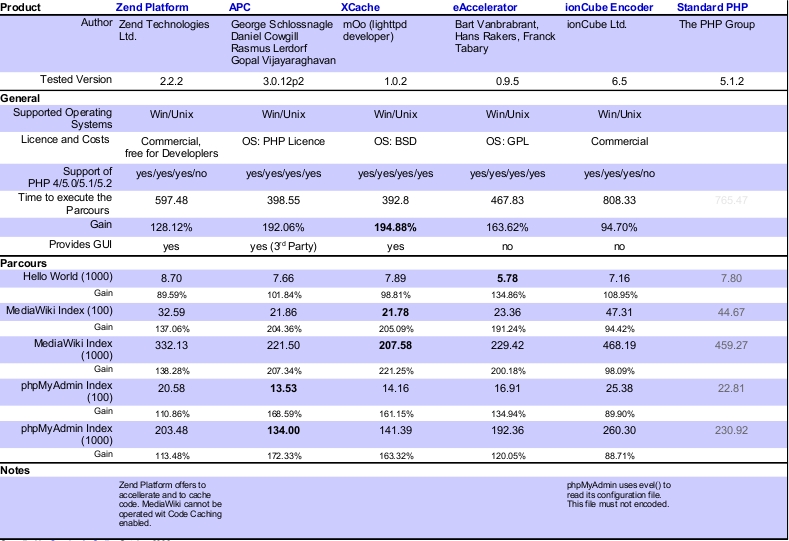

            以上是总结结果,你也许会问我到底用那个加速器好呢?我只能告诉你,首先,用一定比不用好,其次每个加速器还有一些可以调优的参数,所以要根据你的系统环境而定,然后,我个人觉得你可以详细研究下eAccelerator和XCache,这两款潜力还是很大的,最后我从比较专业的测试网站搞了一张结果图:

    cache

    本文转载自:http://killker.com/blog/?p=94

    >>转载请注明出处:VPS侦探 本文链接地址:https://www.vpser.net/opt/apc-eaccelerator-xcache.html
